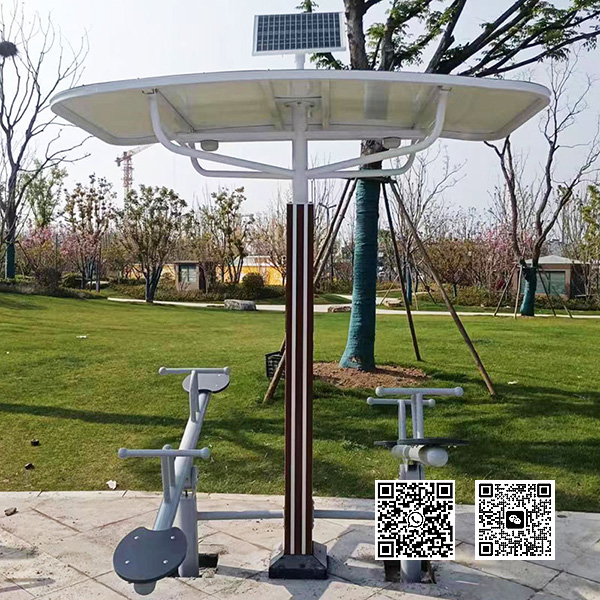

1. Overall dimensions (length × Wide × High: 2420 × 1410× 3215mm.
2. Main materials: steel pipe, aluminum strip, plastic wood.
3. Main bearing column size: main column size 150 × 190mm steel pipe, aluminum strip, plastic wood composite structure; Inner 150 ×150 × 3.0mm square tube.
4. Main bearing beam size: main shaft φ 30. Swing rod φ 60 × 3.0mm.
5. Having independent research and development and independent data terminals (non outsourced intelligent systems).
6. Key features: umbrella structure, equipped with solar photovoltaic power supply system, intelligent induction night lighting function, waterproof lithium battery, color display screen, data collection, data transmission, data processing, exercise recording and data query (display, WeChat mini program, mobile scanning), fitness guidance, data display, backend data statistics and processing system, mobile app link query function, internal limit, Sports information ranking, sports data query (monitor, WeChat mini program, mobile phone).
Scan the code, intelligently report for repairs, and can be used in conjunction with a smart path management system.
7. Working voltage: DC 12V
8. Data collection: exercise time, exercise frequency, exercise mileage, calorie consumption.
9. Data transmission method: wireless transmission.
10. Data presentation methods: voice broadcasting, fixed display screen, intelligent terminal.
11. The top is equipped with a solar panel, and the solar system bracket column is Φ 48 × 2mm high-quality steel pipe, connected to the sunshade with a flange plate, the solar panel uses single crystal photovoltaic panels, and the lithium battery is charged through a controller. It can be used for more than 70 hours when fully charged at once, and provides 2 5W LED lights for night lighting, allowing for exercise at night.
12. The ceiling components are made of 40mm × 40mm × 3.0mm and 2 intermediate 40mm × 40mm ×2.0 Welding and 2 40mmX20mmX2.0mm reinforced pipes, with neutral columns φ 89mm × 3.0mm. The upper part is fixed to the ceiling frame pipe using aluminum plates and rivets.
13. The seat components have an internal limiting structure, and the seat support tube φ 60mm × 3.0mm, the base plate and back plate are made of PE material.
14. The foot pedal component consists of a foot pedal and a connecting tube φ 48mm × 3mm. Welding and forming of materials.
15. The single corner stress of the ceiling is 3000N, and there is no component fracture, functional damage, or obvious permanent deformation.
16. Use a 500G steel ball to drop from a height of 1000mm and impact the display without any cracking.
17. Intelligent system - The display is a 7-inch Android system color screen, with a stainless steel panel and a waterproof level of IP55 or above; Prevent the immersion of water vapor from causing circuit board short circuits; When using, the phone scans the QR code on the equipment, downloads and installs intelligent software (only needs to be installed for the first time), and automatically connects each exercise. After the exercise is completed, the system voice broadcasts the exercise time, exercise frequency, calorie consumption, and other exercise results. Open the phone app software, and all data can be read.
18. There are no protrusions unrelated to the use function; All edges and sharp corners on the surfaces of the equipment that support the human body have a radius of 3.0mm, and all other edges of components that are easily accessible to users or third parties undergo a smooth transition.
19. The steel meets the requirements of GB/T3091-2001 standard and fully meets the strength of the equipment. The welded parts are welded by carbon dioxide gas shielded welding, which is tight and firm, with beautiful welds and no defects such as missed welding, false welding, slag inclusion, cracks, etc;
20. Surface treatment process: degreasing shot blasting electrostatic spraying, using electrostatic spraying, with a smooth and flat surface, uniform color, and firm bonding. The color of the surface spray can be guaranteed to not fade for five years and not peel off for eight years. The service life of the electronic part of the equipment is 2 years, and the service life of the mechanical part is 8 years
21. Installation method: pre buried, buried depth 600mm, foundation size (length × Wide × High: 500mm × 500mm× 700mm
