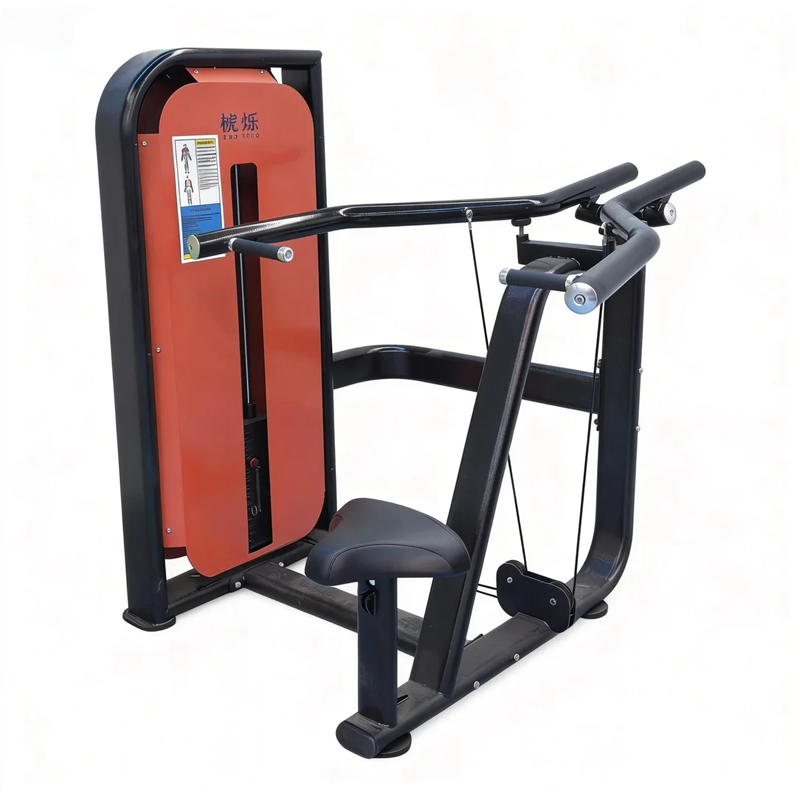

Product Dimensions: 1570 x 1380 x 1620 mm
Fitness Equipment Class S
5
2026-07-04 16:32:58
Product Dimensions: 1570 x 1380 x 1620 mm 1. Target Muscle Groups: Pectorals, biceps, triceps, deltoids, etc. 2. Frame Construction: The main frame utilizes 150 x 50 mm flat-oval tubing; functional sections use high-quality Q235A steel combining 120 x 50 mm flat-oval tubing and Ø60 mm round tubing (3 mm wall thickness). 3. Enclosure: Features a fully enclosed steel shroud that is resistant to deformation and damage, maximizing safety for the user and others. 4. Integrated Large-Screen Display: Displays weather updates, workout duration, indoor temperature, and humidity; includes workout timer alerts. The interface features voice or vibration-activated backlighting to facilitate scientific training (optional based on requirements). 5. Guide Rods: High-hardness, high-gloss chrome-plated finish; 20 mm diameter. 6. Weight Stack: Cold-rolled steel plates; 80 kg standard weight (100–120 kg options available). 7. Adjustment Mechanism: Stainless steel push-button system with precision-engraved markings for easy, quick, multi-level adjustments. 8. Upholstery: Seat and backrest utilize a one-piece molded PU foam process to ensure shape retention; 70 mm thickness; adjustable backrest. 9. Cable System: Maintenance-free, self-lubricating steel cable (6 mm diameter). 10. Pulleys: High-quality fiber-reinforced nylon (U-shaped groove) with precision bearings; anti-slip and anti-derailment design; Ø110 mm diameter. 11. Handles: High-strength PVC material with dual aluminum alloy end caps; 40 mm diameter. 12. Floor Pads: Nylon material with shock-absorption and height-adjustment capabilities; 20 mm thickness, Ø150 mm diameter. 13. Signage: Includes instructional workout decals and safety warning labels.
